Silencing the Whine: How to Eliminate High-Output Alternator Noise on Marine NMEA 2000 Busses
The Dark Side of High-Amp Charging on Modern Nav Stations
Upgrading to a 150A or 250A alternator, adding a smart external regulator, or replacing lead-acid batteries with a LiFePO4 bank can transform charging performance. It can also expose weaknesses that remained hidden in an older electrical system. A chartplotter may flicker when the engine is running, an autopilot may disengage during a charging cycle, or several NMEA 2000 devices may disappear from the network at the same time. On a blue-water passage, these faults are more than an annoyance. A dropped heading sensor, unreliable wind display, or failed navigation screen can remove important layers of situational awareness.
The first mistake is to treat alternator whine as an acoustic problem. Noise heard through a VHF speaker is one symptom, but digital network failures usually involve voltage ripple, transient currents, poor return paths, or conflicting ground references. A single clamp-on ferrite may reduce a narrow band of radio-frequency interference, yet it cannot repair a corroded negative connection, an overloaded network power tap, or a ground loop that is forcing current through a cable shield.
NMEA 2000 is built on CAN bus principles, and CAN is robust when its power, grounding, impedance, and termination are correctly engineered. It is not immune to an unstable DC supply. The dependable approach is systems engineering: measure the bus at the point where it is powered, identify every current return path, separate high-current charging conductors from data wiring, and establish a controlled reference between the network and the vessel electrical system.
How High-Output Alternators Bleed Noise into CAN Bus Architecture

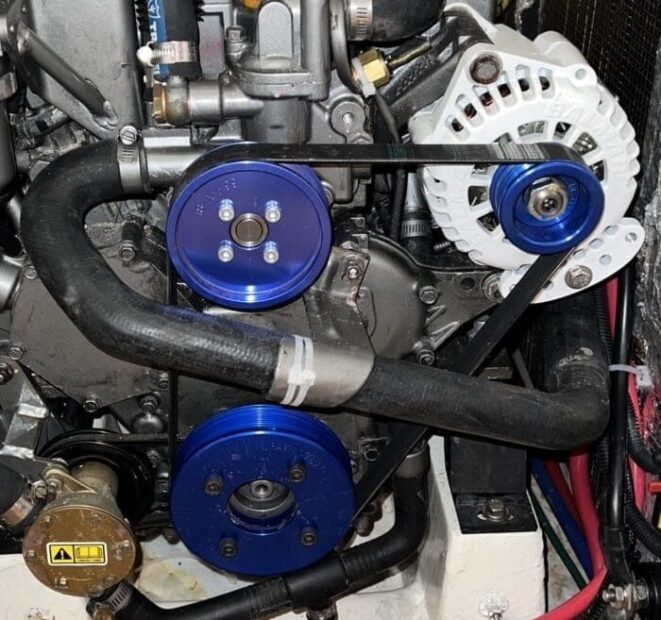

A marine alternator produces three-phase AC internally. Its diode bridge rectifies that output into DC, but rectification does not create a perfectly flat voltage. The resulting ripple appears at the battery and DC distribution system, with its amplitude affected by alternator design, speed, battery acceptance, regulator behavior, wiring resistance, and load. A smart external regulator can make the effect more noticeable because it rapidly changes field excitation as it responds to battery voltage, temperature, state of charge, and programmed charging stages.
At high output, the alternator”s current pulses return through the engine block, negative cable, battery negative bus, and bonding connections. If a network power tap shares part of that path, the voltage at the NMEA 2000 backbone moves with alternator current. The Micro-C cable contains power conductors alongside the CAN data pair and shield, so a noisy reference can reach every connected sensor and display. High-quality marine drop cables use shielded twisted pairs and tinned conductors, as illustrated by the construction of marine NMEA 2000 drop cables, but good cable cannot compensate for poor power topology.
CAN_H and CAN_L communicate through a differential voltage, which provides useful rejection of noise that appears equally on both conductors. That rejection has limits. Excessive common-mode voltage, large ground potential differences, fast transients, or supply voltage outside the transceiver”s operating range can corrupt frames or force a device to reset. Correct 120-ohm termination at both ends of the backbone also matters because impedance errors create reflections that can resemble interference. The NMEA 2000 guidance discussed by marine networking specialists emphasizes approved cable types, correct impedance, and avoiding improvised network layouts.
| Noise signature | Likely onboard symptom | First area to inspect |
|---|---|---|
| Ripple synchronized with engine speed | Display flicker, sensor resets, changing brightness | Alternator output, battery negative, network power tap |
| Sharp spikes during regulator field changes | Autopilot disengagement or intermittent CAN errors | Regulator wiring, alternator ground, transient suppression |
| Common-mode voltage between devices | Multiple network products vanish together | Ground references, shield connections, DC-DC converters |
| Impedance or termination fault | Random packet loss, unreliable device discovery | Backbone ends, T-connectors, daisy chains, cable quality |
| Radio-frequency coupling | Whine in VHF or audio, screen artifacts near transmitters | Cable routing, shielding, filter placement |
When differential signal lines are swamped by voltage differences between separated references, a severe ground loop condition (see Authoritative Source) can form through the instrument shield. That loop may carry current continuously, or only when the alternator is producing substantial output. Either way, the network sees a moving reference rather than the quiet electrical environment its transceivers require.
Anatomy of Ground Loops in Lithium and Dual-Bank Power Topologies
Lithium refits often introduce more electrical boundaries than the original system had. A vessel may now contain a house LiFePO4 bank, a separate start battery, a DC-DC charger, a battery monitoring shunt, an alternator protection device, and a BMS with its own control and fault wiring. Each component may be correctly installed in isolation while the complete arrangement still creates several parallel paths between battery negative, engine ground, bonding conductors, and electronics shields.
A DC-DC charger is intended to control current between two banks, but its negative connection must be planned with the same care as its positive connection. If the start and house negatives are joined at more than one location, charging current can divide through unintended paths. The same problem occurs when an alternator negative is connected to an engine block strap, a battery negative bus, and a separate bonding point without a clear single-point architecture. Marine isolation guidance emphasizes secure grounding conductors and centralized bonding rather than casual connections scattered around the vessel.
The NMEA network should receive power through a properly protected network power connection, with its shield and DC reference handled according to the equipment manufacturer”s instructions and applicable marine electrical standards. In practice, battery refits often violate this principle when a new charger, inverter, or BMS cable is attached to the most convenient negative stud. A shield that should carry little or no DC current can then become part of the return circuit.
- Keep alternator output and return current on conductors sized for the full charging load, not through instrument wiring.
- Use a deliberate negative-bus layout, with high-current returns connected at the correct common point.
- Do not use NMEA 2000 drop-cable shields as substitutes for battery or engine bonding conductors.
- Confirm whether each converter is isolated or non-isolated before connecting its input and output negatives.
- Protect every positive conductor close to its source and inspect the system for loose, hot, or discolored terminals.
If a 250A alternator develops a poor negative connection, even a small portion of its current may seek another route. A thin 22 AWG instrument shield or drain conductor cannot safely carry that current. It can heat, develop voltage drop, radiate interference, and damage connectors. More importantly, stray DC current in a telemetry line can accelerate corrosion at dissimilar-metal interfaces and create a fire hazard if insulation or crimps are already compromised. High-current alternator wiring should therefore be treated as a safety system, not merely an interference source.
Step-by-Step Diagnostic Sequence to Track Down Electrical Noise
Randomly replacing displays or adding ferrites creates confusion because the fault may move when the wiring is disturbed. A disciplined test sequence separates supply problems from data-layer problems. Disconnect sensitive equipment only as necessary, protect the vessel from accidental short circuits, and avoid probing live high-current terminals with unsuitable instruments.
- Establish a baseline at the network power tap. Measure DC voltage and AC millivolts directly across the NMEA 2000 power connection. A true-RMS meter can reveal a broad level of ripple, while an oscilloscope shows the waveform, frequency, and sharp transient edges. Measure with the engine off, at idle, at cruising speed, and while large loads such as refrigeration or an inverter are switched on. Measurements taken only at the battery may miss voltage drop between the battery and the backbone.
- Perform an engine-rev and load-step test. Observe the network while changing engine speed and alternator load. If errors begin when field excitation rises, the charging system is implicated. If the fault appears only when a particular regulator stage, inverter, or DC-DC charger operates, isolate that device temporarily under safe conditions. Where equipment supports diagnostics, compare CAN error counters, device reset logs, and network dropouts with the electrical waveform.
- Check termination and reference continuity with power removed. A correctly terminated CAN backbone normally measures about 60 ohms across the data pair because two 120-ohm terminators are in parallel. A reading near 120 ohms, a short circuit, or a fluctuating value points to a missing terminator, extra terminator, damaged connector, or incorrect topology. Inspect shield-to-DC-ground relationships at every endpoint, following the equipment manufacturer”s instructions and ensuring that multiple unintended bonding points are not present.
- Inspect physical connections and cable routing. Corroded crimps, loose studs, non-tinned conductors, partially inserted Micro-C connectors, and water intrusion can behave like antennas or nonlinear resistors when charging current changes. Inspect the engine negative strap, alternator case ground, battery links, fuse holders, T-connectors, and backbone ends. Keep high-current positive and negative cables physically separated from CAN runs wherever possible, and cross unavoidable intersections at right angles.
- Verify navigation and safety functions independently. A display dropout can resemble a GPS fault, compass anomaly, or satellite problem. Confirm position, heading, depth, AIS, VHF, and autopilot behavior using independent sources and the vessel”s normal safety procedures. If ghost errors continue after localized network checks, verify whether satellite receiver interference or a broader radio-spectrum issue has occurred before filing a maritime report through the USCG navigation reporting channel.
Do not confuse resistance testing with proof that a network is healthy. A connector can show acceptable continuity with no load and still produce substantial voltage drop under current. Likewise, a bus can measure 60 ohms and still suffer from poor power distribution, excessive spur length, or common-mode noise. Dynamic testing under the exact charging conditions that trigger the fault is essential.
Hardware Solutions and Clean Power Topologies for Rock-Solid Instrument Buses
A dedicated DC-DC converter can provide a cleaner and more controlled supply for the NMEA 2000 network, particularly when the house bank is exposed to alternator ripple, inverter switching, or large motor loads. An isolated converter can also break an unwanted DC return path, but only if its isolation rating, grounding instructions, output capacity, and fault behavior suit the installation. Do not assume that every product described as low-noise is galvanically isolated. Verify the data sheet and wire the input and output sides exactly as specified.
At the alternator, use marine-rated suppression equipment selected for the regulator and charging system. High-capacitance snubber assemblies, transient suppression devices, and EMI/RFI filters may be useful when installed directly at the alternator B+ and ground connections, with short conductors and appropriate fusing. Filter selection must account for the alternator”s current, switching behavior, heat, vibration, and fault energy. An unsuitable capacitor or improvised filter can fail dramatically, so high-current modifications should be reviewed by a qualified marine electrician.
- Feed the network through a protected, dedicated power tee rather than an overloaded accessory branch.
- Use certified trunk and drop cables with correct impedance, shielding, strain relief, and waterproof connectors.
- Keep backbone runs away from alternator output, inverter cables, starter cables, and electric motor conductors.
- Twist positive and negative power conductors together where appropriate to reduce loop area and magnetic pickup.
- Use opto-isolated NMEA bridges when connecting electrically separate systems or legacy serial equipment.
- Avoid uncertified daisy chains, excessive spur lengths, extra terminators, and unsealed adapters.
- Document the single-point grounding arrangement so later installers do not create a second return path.
Isolation is not a universal cure. It can reduce conducted noise and ground-loop current, but it does not correct a loose alternator cable, an incorrectly terminated backbone, or an undersized fuse. The strongest installations combine clean charging conductors, a stable network power source, correct CAN impedance, controlled shielding, and careful separation of high-current and data circuits.
Build Resilient Marine Electronics That Never Drop a Packet
Eliminating alternator whine begins with the return path. High-output charging systems must deliver current through properly sized, low-resistance conductors, while the NMEA 2000 network must receive stable power from a deliberate point in the distribution architecture. Ripple voltage, ground loops, poor termination, and damaged connectors are measurable electrical conditions, not mysterious digital behavior.
Once the backbone has been isolated, filtered, correctly terminated, and referenced at a controlled point, the result is more than a quieter VHF speaker. The autopilot is less likely to disengage during heavy motor-sailing, displays remain readable during charging, and navigation sensors retain dependable communication when the vessel is far from assistance. Include an NMEA 2000 power and grounding audit in every annual commissioning routine, and repeat the inspection after any alternator, battery, inverter, or regulator upgrade.
