Demystifying Modern Marine Acoustics Below the Hull
Reading a sonar display in real water is rarely as clean as the diagrams in an equipment manual. Aerated surface water, propeller wash, plankton blooms, suspended sediment, turbulence, and thermal boundaries can all scatter sound before an echo returns to the transducer. The result may be a thick band, a solid blob, or a cluttered cloud that hides the difference between a fish, a bait concentration, a thermocline, and ordinary reverberation. For offshore anglers, that uncertainty can mean missed targets. For navigators, it can obscure bottom detail when reliable depth information matters.
Traditional single-frequency sonar contributes to the problem. A short burst at 50 or 200 kHz has a defined acoustic identity, but it offers limited information about how different targets respond across a wider band. Nearby echoes can merge, especially when the pulse is long enough to carry useful energy into deep water. CHIRP, meaning Compressed High-Intensity Radiated Pulse, changes the operating model by transmitting a continuous frequency sweep and digitally compressing the returning signal. The system places more acoustic energy into a controlled pulse while preserving the short effective resolution of a much shorter pulse. That combination can produce cleaner target separation without automatically requiring the high peak current associated with older high-power sounders.
The Physics Behind Pulse Compression and Acoustic Bandwidth
A fixed-frequency sonar pulse faces a basic compromise. A short pulse improves range separation because two echoes arriving close together are less likely to overlap. However, a short pulse contains less energy, which can reduce detection range and bottom penetration. A longer pulse carries more energy and can be easier to detect after attenuation, but its physical length in water makes adjacent targets appear joined. If sound travels at roughly 1,500 metres per second, even a small change in pulse duration represents a meaningful change in the distance over which echoes are blended.
CHIRP addresses this tradeoff through frequency modulation. Instead of transmitting one tone, the transmitter sweeps through a defined band, such as a low-frequency range for depth and a higher-frequency range for detail. The pulse can remain active long enough to place substantial energy into the water, while the changing frequency provides a signature that the receiver can recognize. In simplified terms, range resolution is strongly related to bandwidth rather than only to total pulse duration. A wider usable sweep generally gives the processor more information with which to distinguish echoes that would overlap in a narrowband system.
At the receiver, a matched filter compares the returning waveform with the expected transmitted sweep. Energy distributed across the long return is mathematically aligned and compressed into a much narrower peak. This is the same broad signal-processing principle used in radar pulse compression. The processor is not creating information from nothing. It is using the known timing and frequency pattern of the transmitted signal to separate the desired echo from unrelated energy, then presenting the result as a sharper feature on the display.
- Pulse duration controls how much energy can be transmitted, but a longer uncompressed pulse can reduce separation.
- Bandwidth supplies frequency detail that helps distinguish nearby echoes and different scattering targets.
- Matched filtering compresses the coded return into a narrow response that is easier to interpret.
- Processing quality still depends on transducer sensitivity, installation, water conditions, and correct gain settings.
Traditional Tone Bursts Versus Broadband Sweeps in Chaotic Water
A legacy 50 kHz or 200 kHz fish finder normally transmits a tone burst at one selected frequency. The lower frequency is commonly associated with greater depth capability, while the higher frequency is favored for detail in shallower water. That comparison is useful, but it should not be treated as a universal rule. Actual performance depends on transducer design, beam width, transmit power, receiver sensitivity, hull material, mounting location, bottom composition, and the frequency response of the entire system.
A swept CHIRP array distributes transmission across a frequency band and then processes the return as a coded signal. This can improve target separation and reveal more structure in the water column. Sound speed also changes with temperature, salinity, and pressure. When an acoustic path crosses a sharp thermal boundary, refraction and changes in propagation speed can alter the apparent shape or position of a return. CHIRP does not eliminate those physical effects, but its broader information set and digital processing can make genuine layers easier to distinguish from a smeared, single-tone response.
| Characteristic | Fixed-frequency sonar | CHIRP broadband sonar |
|---|---|---|
| Transmission | One selected frequency or narrow tone burst | Continuous sweep across a defined frequency band |
| Energy strategy | Short, concentrated burst or longer single-frequency pulse | Longer coded pulse with digital compression |
| Target separation | Limited by pulse length and bandwidth | Improved when bandwidth and processing are well matched |
| Typical interpretation | Strong returns may merge into arches or solid marks | Separate targets and bottom features can appear more distinctly |
| Installation dependency | Still sensitive to mounting and interference | Especially dependent on a compatible broadband transducer and clean signal path |
Power delivery is another important distinction. A system advertised with a very high peak wattage is not automatically the clearest system. CHIRP can place energy into the water over a longer coded transmission and recover weak returns through correlation processing. That may deliver useful penetration with lower peak electrical demand than an older high-power narrowband unit, although the actual current draw must be checked in the manufacturer”s specifications. The alternator, battery bank, fuse, cable gauge, and return path still need to be sized for the complete installation, not just the nominal sonar output.
Separating Biomass from Noise Across the Water Column
Water column interpretation depends on more than identifying a mark as “fish.” Plankton, zooplankton, gas bubbles, suspended particles, baitfish, and temperature layers can all scatter acoustic energy. Their responses vary with size, density, orientation, depth, and frequency. A broadband sweep gives the receiver multiple frequency responses from the same region of water. That extra information helps the processor and the operator distinguish a continuous density layer from a collection of stronger, more localized targets.
A thermocline often appears as a relatively continuous band because it marks a rapid change in temperature and therefore in water density and sound speed. A plankton or zooplankton layer may also form a band, but its strength and texture can vary with frequency and time. Bait balls tend to produce denser, more irregular returns, while predators holding within or immediately beneath them may create stronger individual marks or small gaps in the acoustic mass. No display mode can guarantee species identification, so the most reliable interpretation combines sonar shape with depth, speed, tide, surface conditions, and repeated passes over the target.
This type of acoustic backscatter profiling is closely related to the methods used in hydrographic and oceanographic survey work. Public datasets maintained by NOAA water column sonar records demonstrate how acoustic returns can be archived and examined through the water column rather than reduced to a single bottom-depth value. Recreational equipment is not automatically equivalent to calibrated scientific survey gear, but the underlying idea is comparable: changes in echo strength and structure can reveal biological layers, physical boundaries, and suspended material.
- Continuous horizontal bands often suggest a layer, boundary, or widespread scattering population.
- Compact bright marks may indicate individual fish or small groups, especially when they remain distinct from the surrounding layer.
- Dense irregular clouds can represent bait, plankton, suspended sediment, or severe aeration, so context is essential.
- Repeated passes help separate a real feature from momentary interference or a display artifact.
Practical Transducer Setup and Onboard Power Management
Start with compatibility rather than marketing range. The transducer must support the sounder”s CHIRP band, connector arrangement, software features, and mounting method. A low-frequency band is generally more useful when depth and penetration are priorities, while a higher-frequency band can provide finer detail at shorter ranges. Beam angle matters just as much. A narrow beam concentrates energy and can improve depth discrimination beneath the vessel, while a wider beam covers more bottom area but may combine returns from different slopes or targets.

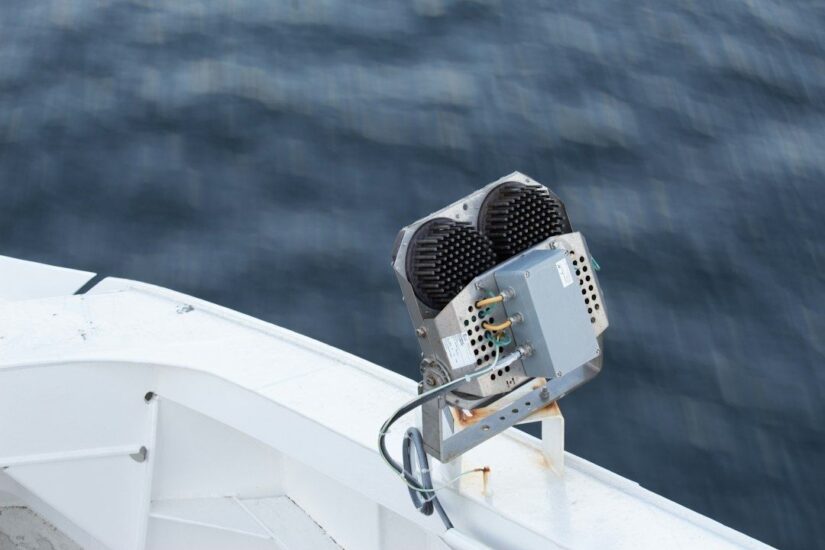

Installation quality determines whether the theoretical advantages reach the display. A transducer mounted behind a strake, near a through-hull fitting, or in propeller turbulence may produce aeration that no gain adjustment can fully repair. Through-hull installations require careful fairing and alignment. Transom mounts need a location that remains immersed at speed and clear of propeller wash. In-hull installations must account for hull material and bonding quality. Cable routing should keep the transducer lead away from alternator cables, inverter wiring, VHF transmit cables, radar supplies, and poorly filtered switching equipment.
- Verify the power foundation. Measure voltage at the sounder while transmitting, inspect fuse holders and terminals, and confirm that the negative return is secure. On a 12V or 24V bus, voltage drop can cause resets, weak transmissions, or unstable display performance.
- Inspect the physical signal path. Check the transducer face for marine growth, paint, impact damage, or trapped air. Confirm that the mounting angle is correct and that the cable connector is dry, locked, and free from corrosion.
- Reduce mechanical interference. Compare returns at idle and cruising speed. If clutter increases with engine speed, investigate propeller cavitation, hull turbulence, engine vibration, and mounting location before increasing gain.
- Set a conservative starting point. Use automatic gain only as a baseline, then lower gain until the background becomes stable. Excessive gain turns weak ambient scattering into apparent targets.
- Adjust the sweep window to the job. Select the compatible low, medium, or high band that matches the expected depth and target size. Avoid using a broad range simply because it is available if the resulting display becomes difficult to read.
- Confirm performance over repeated runs. Mark a target, change course, and pass over it again. A genuine bottom feature or fish group should show repeatable behavior, while electrical or aeration noise often changes with heading or engine load.
Power management deserves the same attention as acoustic configuration. Use appropriately sized conductors, short protected runs, corrosion-resistant terminals, and a dedicated or well-isolated supply where practical. Networked chartplotters, radar, sonar, AIS, and communications equipment can interact through shared grounds or switching noise. If a problem appears only when another device transmits or when an inverter starts, begin with grounding, cable separation, ferrite suppression where approved, and voltage measurements under load. Do not compensate for electrical interference by driving sonar gain higher.
Dialing in Real Acoustic Clarity on Your Next Passage
Acoustic bandwidth translates into practical clarity because it gives the receiver more information to work with. A properly installed CHIRP system can place greater energy into the water while retaining fine range separation through pulse compression. That can make bottom contours more readable, reveal individual marks inside a bait concentration, and show water column layers that a narrowband display may merge into one heavy return. The improvement is substantial, but it remains dependent on transducer selection, hull conditions, speed, sea state, and disciplined interpretation.
- Keep the transducer face clean and free of marine growth, paint, and impact damage.
- Use a mounting position that avoids propeller wash, strakes, chines, and trapped air.
- Match the transducer”s frequency bands and beam angles to the depth and targets that matter most.
- Provide clean, protected power with sound cable sizing and corrosion-resistant connections.
- Begin with moderate gain, then validate suspicious marks through repeated passes and changes in speed.
- Read the whole water column, not just the brightest return, and compare sonar evidence with charted depth and navigational conditions.
The most dependable sonar interpretation comes from treating the display as a measured acoustic picture rather than a camera. CHIRP improves the measurement by combining broadband transmission with digital correlation, but good engineering still starts at the hull, continues through the wiring, and ends with careful judgment at the helm. When the signal path is clean and the settings match the environment, clutter becomes easier to diagnose, genuine targets stand apart more clearly, and the sonar becomes a dependable part of safer navigation and more deliberate fishing.
